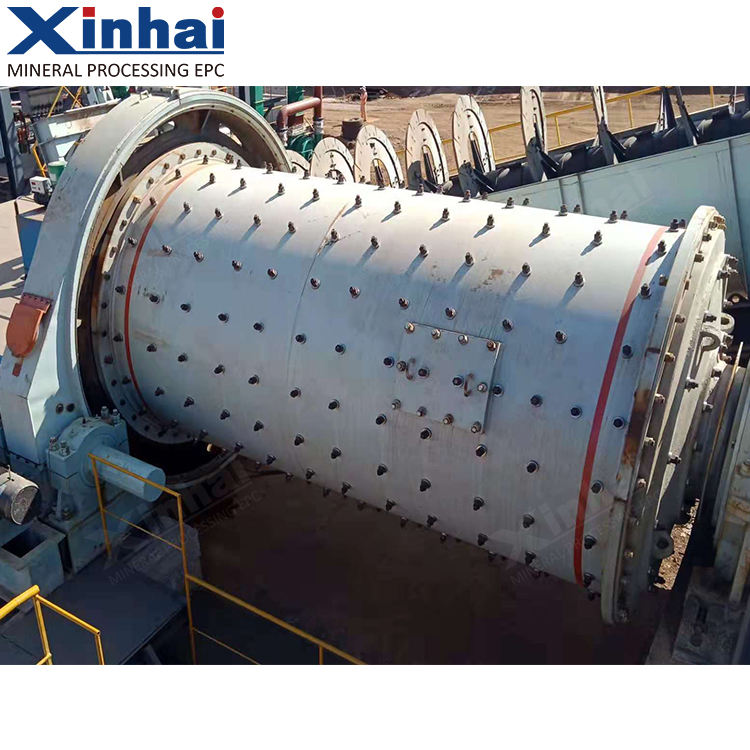

Energy-Saving Ball Mill
Overflow and grate ball mills on rolling bearings for primary/secondary grinding, with lower energy draw and stable throughput.
≤ 7.5 mDiameter
0.65–615 t/hCapacity
01
Ball Mills & Grinding
Energy-saving grinding mills that liberate valuable minerals at the right particle size — the heart of every concentrator.
Details

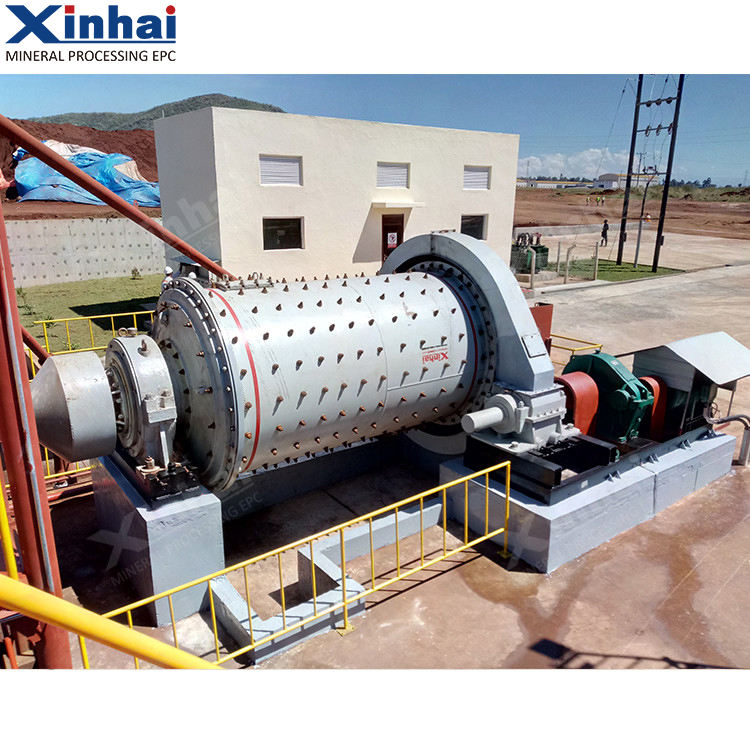

Rod Mill
Delivers a uniform, over-grinding-free product — preferred ahead of gravity and magnetic circuits and for tungsten and tin ores.
0.62–250 t/hCapacity
UniformProduct

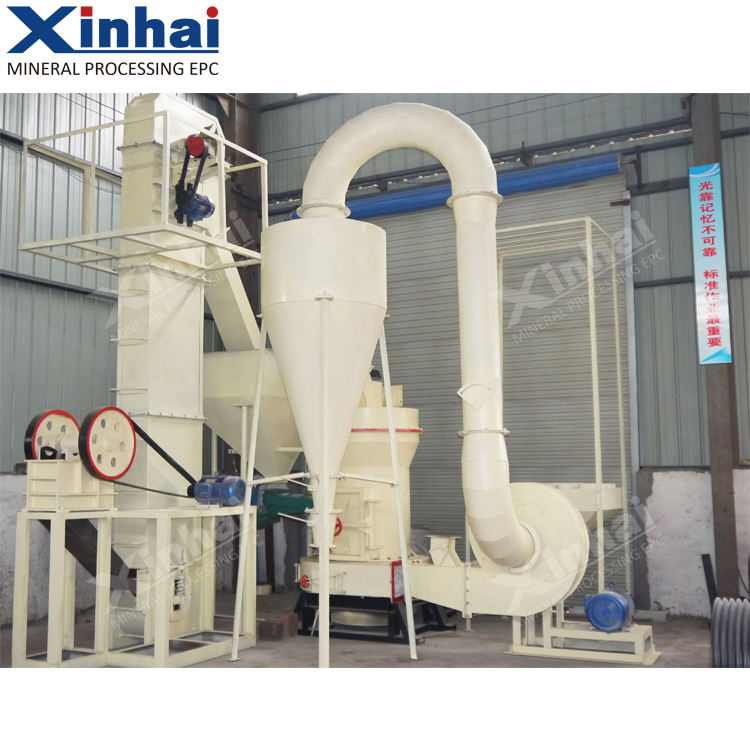

Raymond / Roller Mill
Fine pulverising of limestone, gypsum, barite and other non-metallic minerals to controlled mesh sizes for powder products.
80–400 meshFineness
Low dustOperation
02
Flotation Equipment
Mechanical and pneumatic-mechanical cells that selectively separate sulphides and non-metallic minerals at high grade and recovery.

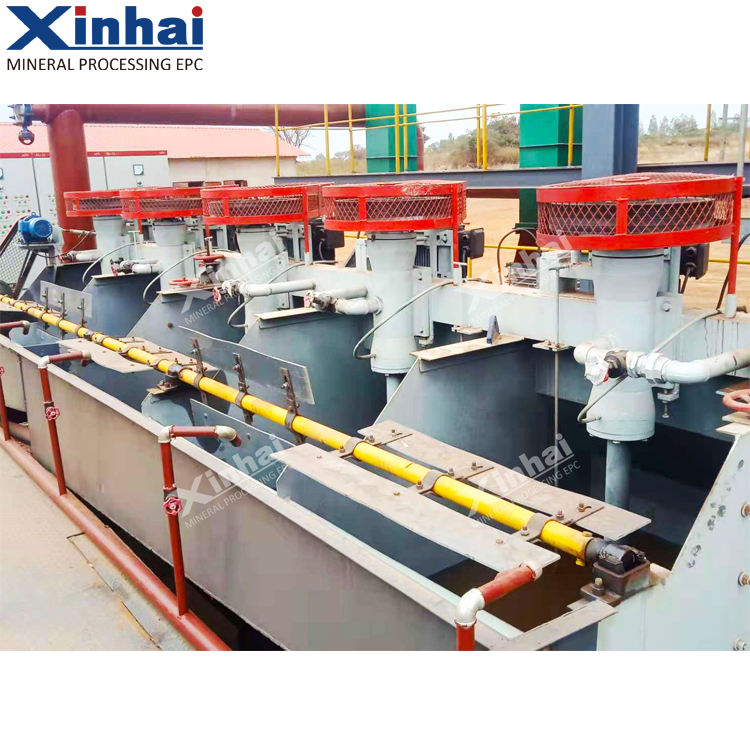

XCF / KYF Flotation Cell
Air-inflation flotation cells for large-scale copper, lead-zinc and gold circuits, with low energy use and easy level control.
1–38 m³Volume
Air-forcedAeration

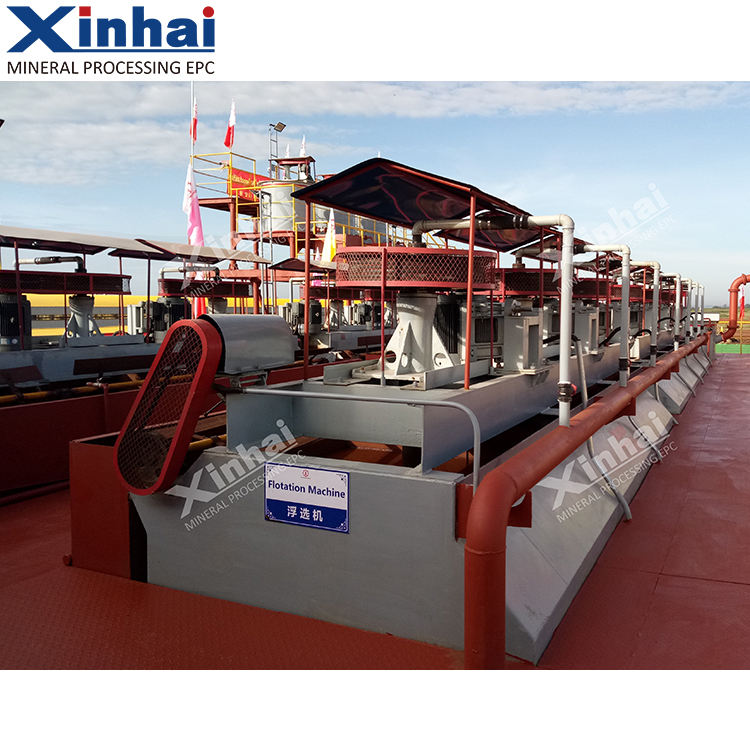

SF / JJF Flotation Cell
Self-aspirating mechanical cells that draw their own air — robust, simple to operate and ideal for roughing and scavenging.
0.37–20 m³Volume
Self-airAeration
Flotation Column & Tank
Tall column cells for fine-particle and cleaning duties — boosting concentrate grade on copper, molybdenum and graphite.
Fine particleBest for
High gradeOutput
03
Gold Extraction (CIP / CIL)
The full gold room — leaching, adsorption, desorption-electrolysis and smelting — plus our eco-friendly CNLITE leaching agent.
Desorption Electrolysis System
High-temperature, high-pressure elution and electrowinning that strips loaded carbon and recovers gold fast and completely.
200–5000 kgPer batch
FastElution
CIP / CIL Plant
Complete carbon-in-pulp / carbon-in-leach circuits — leach tanks, agitators, screens and carbon transfer, delivered as one package.
50–3000 t/dScale
TurnkeyDelivery
CNLITE Gold Dressing Agent
A low-toxicity leaching reagent that replaces sodium cyanide one-for-one — no flowsheet change, far lower environmental risk.
Cyanide-freeChemistry
ISO 14001Certified
04
Gravity & Magnetic Separation
Reagent-free separation by density and magnetism — for free gold, tin, tungsten, iron and the removal of magnetic contaminants.
Centrifugal Concentrator
Enhanced-gravity recovery of fine free gold and heavy minerals — high recovery, no reagents, low operating cost.
Up to 60 t/hThroughput
Fine goldBest for
Magnetic Separator
Wet and dry drum separators for magnetite and hematite recovery, and for protecting downstream equipment from tramp metal.
Wet / dryTypes
High fieldOptions

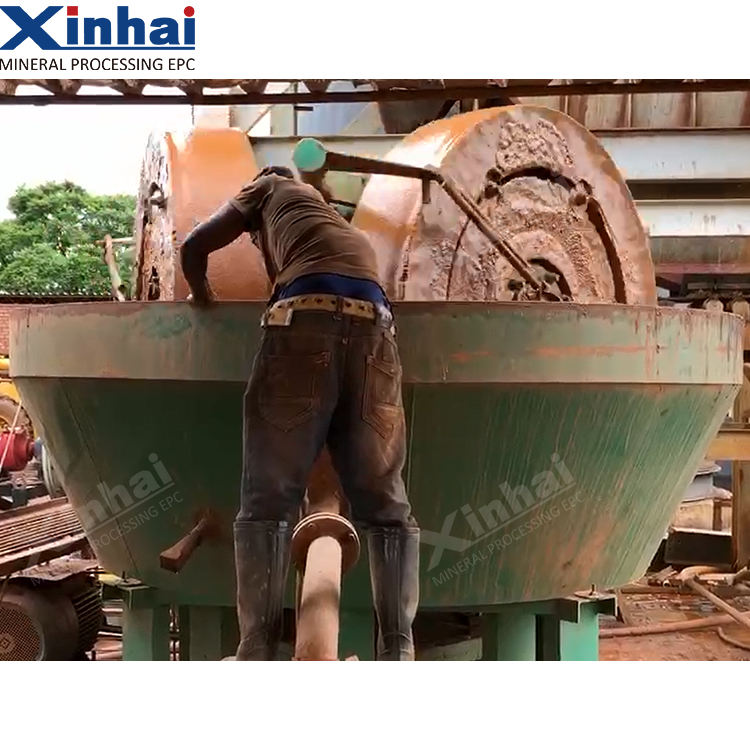

Wet Pan Mill
The classic grinding-and-amalgamation pan for small-scale and artisanal gold operations — low cost, simple to run.
Small scaleBest for
Low costOperation
05
Classifying, Thickening & Dewatering
Closing the grinding circuit and managing water — classifiers, hydrocyclones, thickeners and filters that lift efficiency and recycle process water.
High-Efficiency Thickener
Centre- and peripheral-drive thickeners that recover clear water and densify tailings — cutting water cost and storage volume.
≤ 50 mDiameter
High rateSettling
Spiral Classifier
Mechanical classification in closed circuit with the mill — with an auto-lifting discharge that simplifies start-up and maintenance.
Auto-liftDischarge
Closed circuitDuty
Agitation & Mixing Tanks
High-uniformity agitation tanks for reagent conditioning and slurry storage ahead of flotation and leaching.
UniformMixing
Wear-linedBuild
06
Crushing, Screening & Feeding
The front end of the plant — reducing run-of-mine ore and feeding it steadily into grinding, with the right crusher for each stage.
Jaw Crusher
Primary crushing with a large reduction ratio and high efficiency — the rugged first stage for hard-rock ores.
PrimaryStage
High ratioReduction

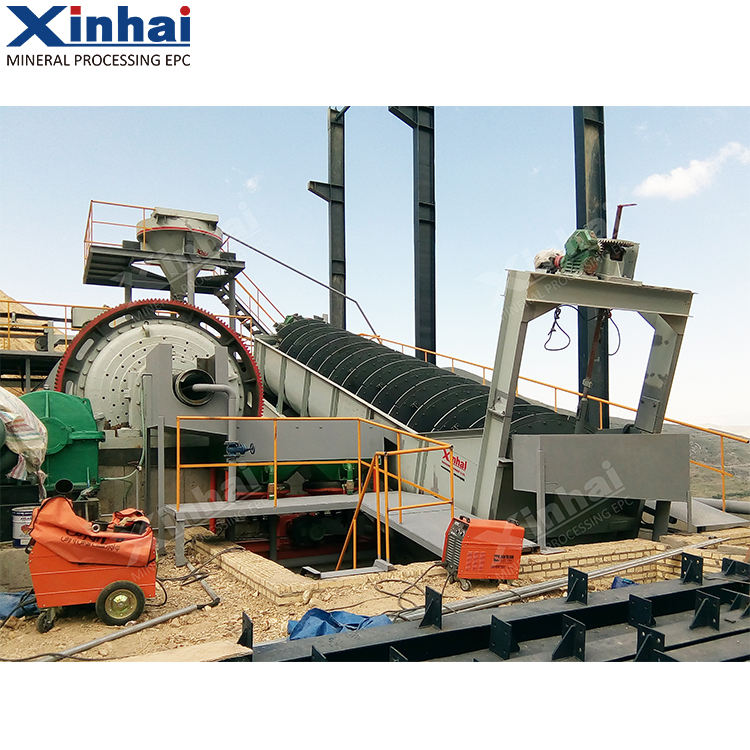

Ore Washing Plant
Scrubbing and washing lines for clay-bearing chrome, manganese and alluvial ores ahead of separation.
De-clayFunction
AlluvialBest for
Wear-Resistant Rubber
Mill liners, pipe and pump linings with a wear index reaching 128% — extending equipment life in abrasive duty.
128%Wear index
Anti-corrosionProperty
